Question 1

Why do you need this device?

Accepted Answer

Essential for battery-powered systems like e-rickshaws, e-scooters, e-bikes, and inverters—this device monitors voltage and charge levels, helping you track battery health and know when to recharge. A must-have for EV owners.

Question 2

What type of display does it have?

Accepted Answer

It features a large green back-lit display that ensures easy visibility, even in dark surroundings. You can configure the backlight to stay ON or OFF as per your preference.

Question 3

Where can this device be used?

Accepted Answer

It is ideal for E-rickshaws / E-scooters / E-bikes / Inverter battery systems / Any 12V, 24V, 36V, 48V Lead Acid Battery setup

Question 4

How to connect and set it up?

Accepted Answer

1.Press and hold setting button 2.While holding it, connect the cable to the battery 3.The display will start blinking, indicates setting mode 4.Set battery type:Select P for Lead Acid Battery|Choose the voltage: 1 = 12V | 2 = 24V | 3 = 36V | 4 = 48V

Question 5

What are the display settings (S1, S2, S3)?

Accepted Answer

S1: Choose what you want to display: Voltage only | Percentage only | Both voltage & percentage S2: Auto turn-off backlight after 10 seconds of inactivity. S3: Manual setting to keep back-lit ON or OFF always.

Question 6

How is the charge percentage calculated?

Accepted Answer

The State of Charge (SOC) is voltage-based. -If the battery is charging, it will show 100%. -If there's a voltage drop, the percentage will decrease accordingly. -This is a standard method of estimating charge in lead-acid batteries.

Question 7

Can I use this device for lithium batteries?

Accepted Answer

No, this device is specifically designed for lead-acid batteries only. It reads the voltage and calculates charge percentage based on the voltage characteristics of lead-acid chemistry, which is different from lithium-ion batteries.

Question 8

Is the device waterproof or weatherproof?

Accepted Answer

This depends on the model, but generally, most of these displays are not waterproof. They should be installed in a dry, protected location or enclosed in a weatherproof casing if used outdoors.

Question 9

Will the display stay on all the time?

Accepted Answer

That depends on your S2 and S3 settings You can set the backlight to turn off after 10 seconds (S2). Or keep it always ON or OFF manually using the S3 option. The main display will usually stay on as long as it's connected to the battery.

Question 10

Can I change settings after installation?

Accepted Answer

Yes. To change settings 1.Disconnect the device from the battery. 2.Hold the setting button, and then 3.Reconnect to the battery — the device will enter setting mode again. You can now adjust battery type, voltage, and display preferences.

ASIN	B07PNLQ6SK
Best Sellers Rank	#2,307 in Industrial & Scientific ( See Top 100 in Industrial & Scientific ) #41 in Voltage Testers
Brand	amiciSense
Brand Name	amiciSense
Colour	Green
Country of Origin	China
Customer Reviews	3.8 out of 5 stars 1,492 Reviews
Global Trade Identification Number	08904296704364
Importer Contact Information	Amici Import Export
Included Components	Battery Capacity Indicator
Item Type Name	Battery Capacity Indicator
Manufacturer	Generic
Maximum Operating Voltage	70 Volts (DC)
Measurement Type	Voltmeter
Min. Operating Voltage	8 Volts (DC)
Minimum Operating Voltage	8 Volts (DC)
Packer Contact Information	Amicikart Online Services Pvt Ltd, A-28B, Sector-58, Noida (Contact No.-9809709898)
Power Source	Battery Powered
Power Source Type	Battery Powered
Style	Digital
Style Name	Digital
Unit Count	1.00 Count
Warranty Description	1 Year Warranty

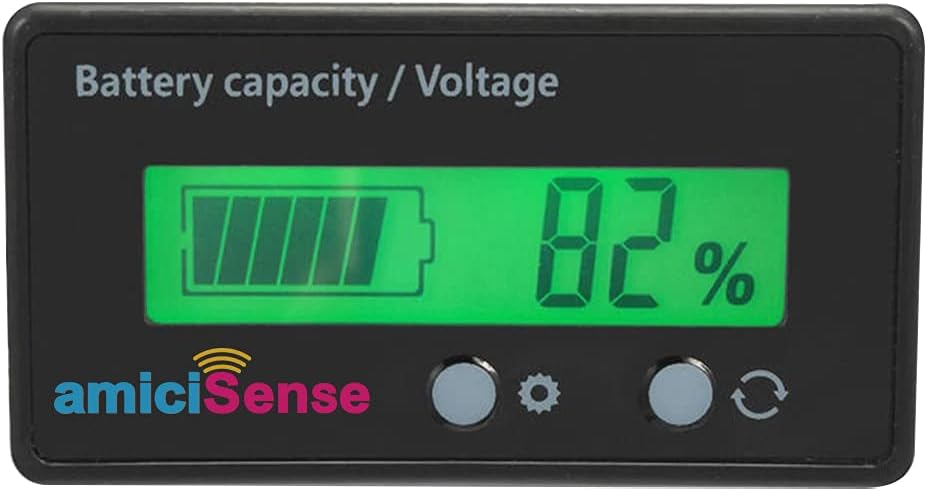

amiciSense 8~70V Battery Capacity Indicator for Lead Acid Battery, Check Battery Voltage and Charge Percentage of E-Rickshaw and E-Bikes, Green Display
