🔧 Switch Smart, Stay Powered: The Ultimate 4-Position Selector for Pros

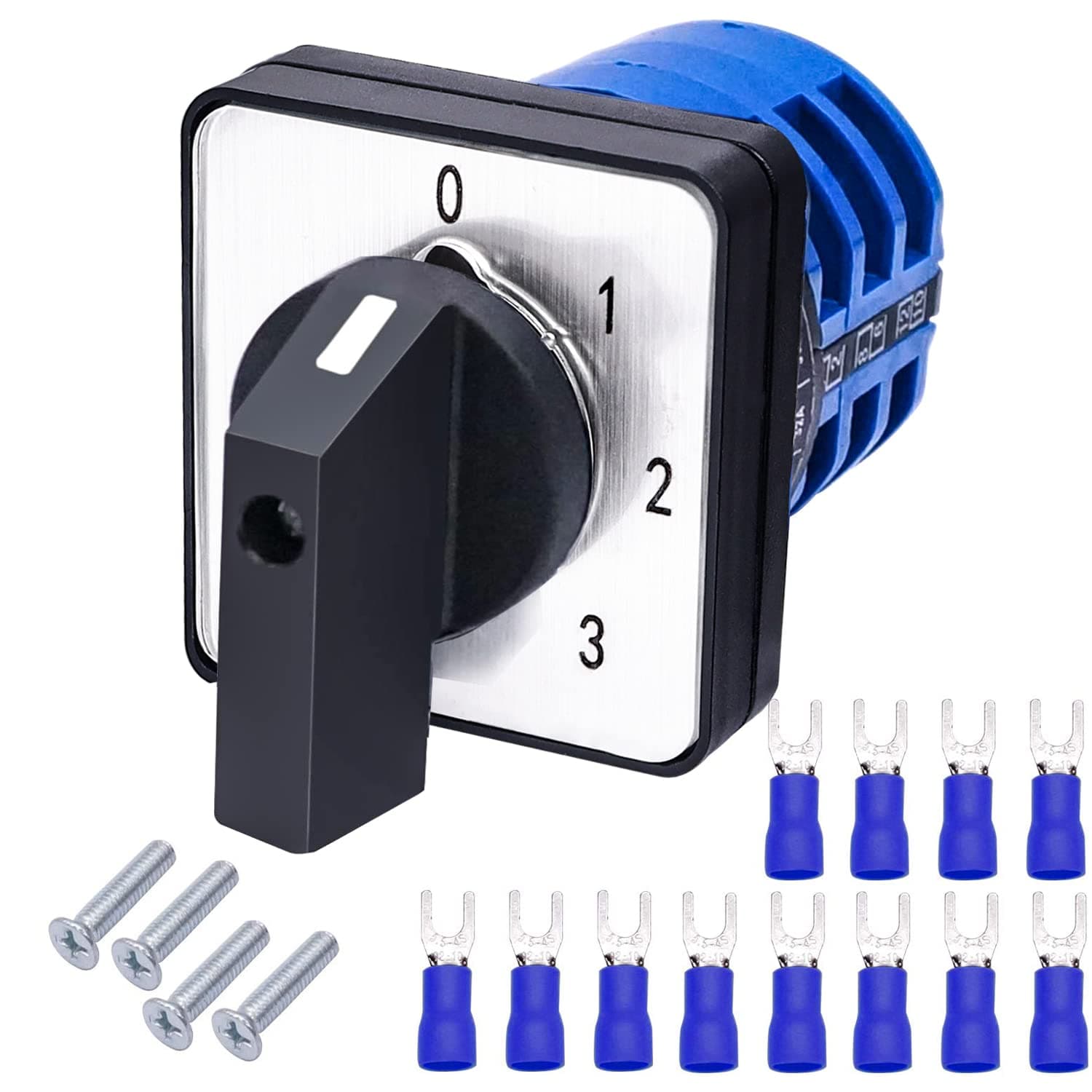

The Taiss Universal Changeover Switch is a robust 4-position latching rotary cam selector designed for industrial and professional use. Rated at 32A and 690V, it features flame-retardant PC housing and premium silver alloy contacts for durability and reliable conductivity. With 12 terminals and a compact 64x64x104mm footprint, it includes 8 blue SV2-4 connection terminals and mounting screws for easy installation. Ideal for managing multiple power sources or circuits, it offers a safe, efficient, and professional-grade switching solution.
| ASIN | B08GRHDLFR |
| Actuator Type | Rotary |
| Best Sellers Rank | #37,726 in Industrial & Scientific ( See Top 100 in Industrial & Scientific ) #13 in Selector Switches |
| Brand | Taiss |
| Brand Name | Taiss |
| Circuit Type | 4-way |
| Connectivity Protocol | X-10 |
| Connector Type | Screws |
| Contact Material | Silver |
| Contact Type | Normally Open |
| Control Method | Touch |
| Current Rating | 32 Amps |
| Customer Reviews | 4.4 out of 5 stars 69 Reviews |
| International Protection Rating | IP54 |
| Item Dimensions | 2.76 x 2.76 x 3.15 inches |
| Manufacturer | Taiss |
| Material Type | Copper |
| Model | 32A 690V |
| Mounting Type | Surface Mount |
| Number of Items | 1 |
| Number of Positions | 4 |
| Operating Voltage | 690 Volts |
| Operation Mode | ON-OFF |
| Switch Type | Rotary, Temperature Switch |
| Unit Count | 1 Count |
| Wattage | 22080 watts |
S**R
36v 12awg semi-sometimes-outdoors A+
Used this to wire 36v motor to various inputs, it works great. Wire screws hold very well. Used 12awg, 36v, semi-outdoors, works nice.
S**E
Good three way manual power transfer switch.
I use this for my campervan so I can manually toggle between my new inverter, shorepower and on-board generator to power my outlets as there was limited number of automatic transfer switches to handle three different power sources and they took up more space than my 2 source auto transfer switch. There was no real wiring diagram but the internet has some videos and pictures that show it. As for wiring there is just a load and nuetral and there is no ground on the switch, so the ground should go to the common bus which should be wired to the fuse box. As for placement, it is easy to mount but i would reccomend using a box to cover the wilre also surround the wire and maybe use some liquid electrical tape on the terminals. So far, there has no problems and I have used it for draws up to 30 amps.
J**.
BUENO
PERFECTO
J**A
I'd buy it again.
Size isn't bad. Ease enough to install. The switch function feels solid and the contacts make a nice audible sound. Good for the price.
B**T
Doesn’t come with needed screws or a usable wiring diagram
4 screws needed for the face plate not included. No usable wiring diagram. So it took me 30 minutes with a volt meter to figure it out. Took me 2 hours to drive to Lowes to get 4 screws at 1.98. Sure would like to have my 2h 30 min back. the 1.98 I don’t care about. Put screws in and a descent diagram..
J**J
Excellent
Excellent switch, works great. Allows me to switch 220V power between 3 different outlets for 3 different machine tools, plus one position for all units off. No instructions, so you have to take a DMM to the unit to understand how it operates - hence -1 point for that. But otherwise worth 5 stars.
A**M
Reliable
I wired this up on my 3 speed funace fan. It now allows memory control the speed of the fan using one switch and no lt 3 different switches. Works great for my shop air filter
B**Y
Great Switch
Great switch but I lost one of the terminal screws while installing it. Where can I get replacement screws?
