- About this item 4-in-1 BME680 gas sensor. Monitor indoor air quality. Qwiic enabled for easy prototyping. No soldering required. I2C Addresses: 0x77 (Default) or 0x76 Operating voltage range: 1.71V - 3.6V. Typically 3.3V if using the Qwiic cable. Typical current consumption (varies based on mode and active sensor). Base: 2.1µA to 18mA. 0.15 µA (sleep mode) Relative humidity: Operating range: 0% to 100%. Absolute Accuracy: ±3%RH. Resolution: ±0.008%RH. Temperature: Operating range: -40°C to +85 °C. Absolute Accuracy: ±0.5°C to ±1.0°C. Resolution: 0.01°C Pressure: Operating range: 300hPa - 1100hPa. Relative accuracy: ±12Pa (25°C to 40°C @ constant RH). Absolute accuracy: ±60Pa (0°C to 65°C). Resolution: 0.18PA, highest oversampling. Gas: Resolution of gas sensor resistance: 0.05% to 0.11%

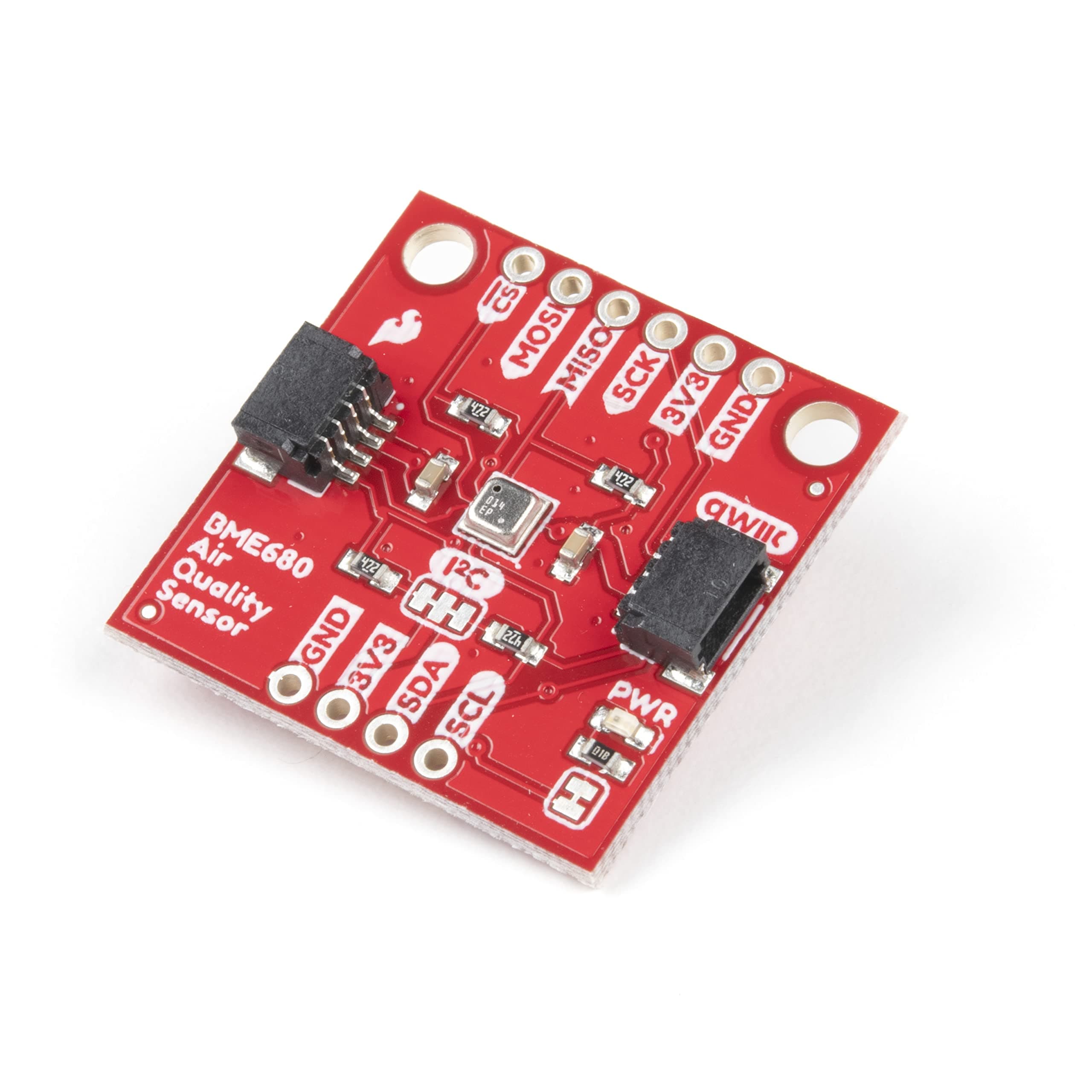

SparkFun Environmental Sensor Breakout - BME680 (Qwiic)
