🔧 Distribute power like a pro — compact, reliable, and built to last!

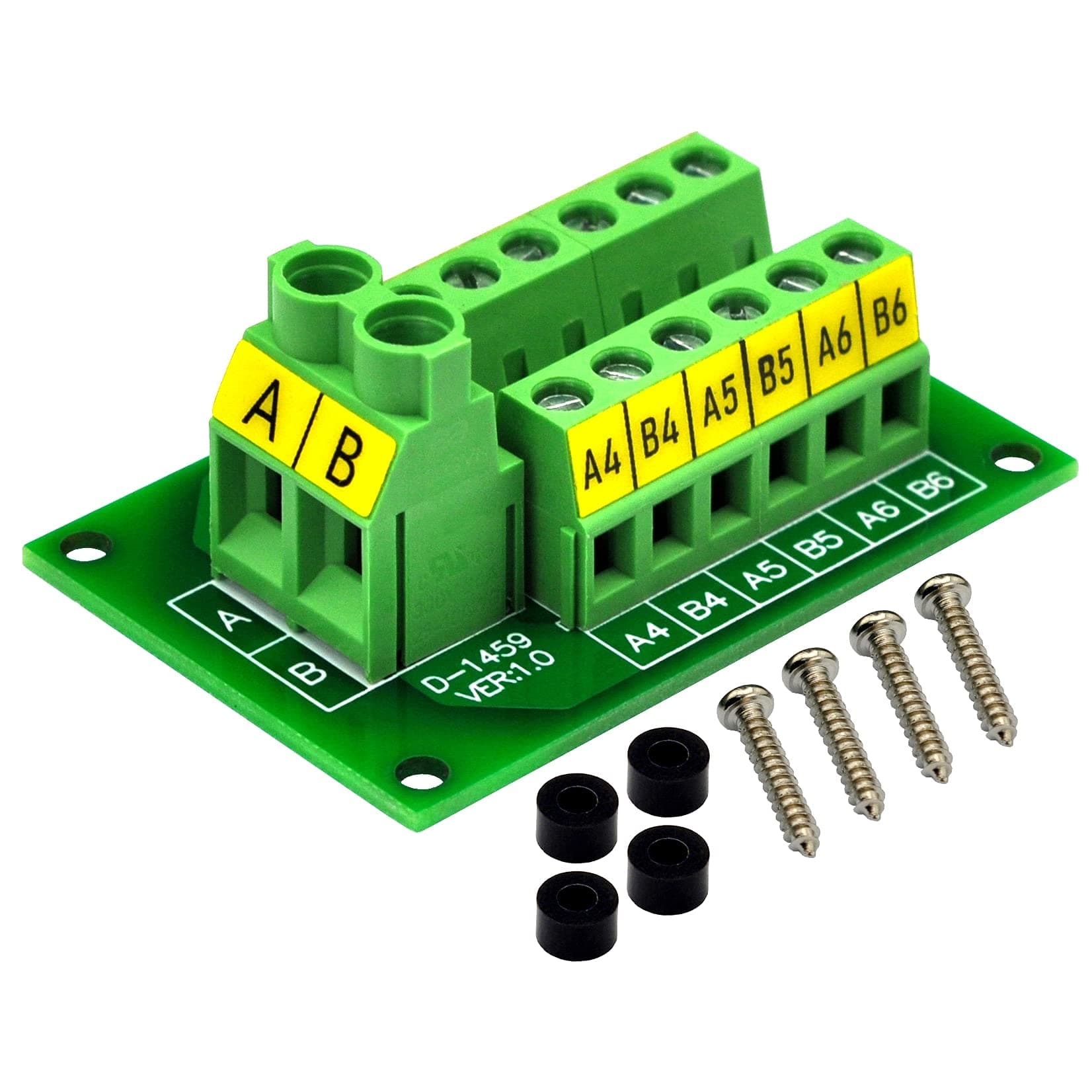

The OONO 30Amp 48V 2x6 Position Terminal Block Distribution Module is a compact, high-current screw terminal block designed for efficient power distribution. Featuring 12 positions with robust M3 steel screws and brass pin headers, it supports wire gauges from 26AWG to 10AWG and is certified by UL, CE, and CQC for industrial safety. Ideal for solar setups, custom electronics, and control boxes, it fits standard junction boxes and ensures secure, corrosion-resistant connections.
| ASIN | B09D3BV22M |
| Best Sellers Rank | #23,048 in Industrial & Scientific ( See Top 100 in Industrial & Scientific ) #17 in Ground Circuit Terminal Blocks |
| Brand Name | OONO |
| Connector Type | Screw |
| Current Rating | 30 Amps |
| Customer Reviews | 4.7 4.7 out of 5 stars (160) |
| Gauge | 26.0 |
| Item Dimensions W x H | 2.24"W x 1.05"H |
| Manufacturer | CZH-LABS |
| Material Type | Brass, Glass |
| Model | D-1459 |
| Mounting Type | PCB Mount |
| Number Of Contacts | 12 |
| Number Of Poles | 12 |
| Number of Positions | 12 |
| Part Number | D-1459 |
| Pitch | 7.62 Millimeters |
| Specification Met | CE, CQC, UL |
| Voltage | 48 Volts |
A**R
Nice small terminal block
I wanted a small terminal connector to connect 5 small solar panels to a common feed wire. This was perfect, and it easily fits inside a standard junction box for outdoor use.
T**M
Does the job on my custom 3d printer
Used this in a custom printed control box for my 3d printer. It allowed me to only run one pair of wires and then distribute to the other items in my box with relative ease (like the rasberry pi, the printer motherboard, etc.) I did NOT use it to distribute to the bed mosfet, but ran those wires direct; This would probably have handled it (all the numbers worked out) but I didn't want to mess with getting too close to the limits on this block. Anyway, it worked well and did the job I needed it to do.
B**N
Looks Cool!
Haven't used it yet but looks like it work just fine!
T**O
Perfect DC Power Distribution
Very solid design and was a great solution for a large AV project I did. Very pleased.
C**S
Worked perfectly
It made it easy to hook up my LED light strips without having to use wire nuts or solder
J**S
Great item but watch your wire gauge
This terminal block distribution module is a fine alternative to simply connecting your wires together. Mine seems to be working alright. The description states that the main A/B terminal blocks can take from 26 to 10 gauge wire and the side A/M terminal blocks can take from 26 to 12 gauge wire. I disagree. I used 10 and 12 AWG wires and had great difficulty getting them into the blocks. What should have taken all of 5 minutes to assemble took over 30 minutes. I should have been able to simply loosen the screw for the block, insert the wire, and tighten the screw for the block. A very simple process. Since the wires I used were at the max of the size range, I had to wiggle, twist, and push for a few minutes per wire. If I had to use all six terminals, this could have taken me over an hour to do. If you choose to use 10AWG for the main terminal blocks, or 12AWG for the side ones, I suggest you trim a few strands away from your wire before you try to insert it. This would save you a lot of time and effort.
B**.
Be aware of dimensions
The terminal block is great. Be aware, its bigger than it looks. The long side of the block is a little bigger than the short side of a credit card.
C**N
A go to for wiring my model train layout.
These work great for wiring multi-track segments of my model railroad. The apertures are marked A and B, which correlate with the A and B hub on the end.
P**O
module court circuité...a brulé mon setup
