Is there a comprehensive group that does all the work, or each group has its work?

Question

Accepted Answer

This product (S190-12) Sablon Adjustable Minifix/Rafix & Shelving & Dowel Jig is used on 3/4” (18-19mm) and 5/8” (15-16mm) wood & panels. Besides drilling cam holes, the jig can also be used for drilling shelving and dowel holes 8-10mm plastic or wood dowels. Drills 15mm minifix cam holes and 20mm rafix connector holes with the adjustable self-centering drilling bits. Drills minifix bolt, insert and dowel holes 8-10mm with adjustable drilling bits. Also, drills 5mm shelving holes in Euro standart 32mm. An interconnection jig is available in the set to drill holes for the separator parts in mid section of panels.

The product (S210) Sablon Multi Function Drilling Jigs Set is used for drilling cam connectors, shelving, hinges, drawer slide and handles to make cabinets, closets and other like projects. Minifix jig is used on 18-19 mm (3/4 inch) wood & panels to drill holes for 15 mm cams and 8 mm & 10 mm wooden or plastic dowels. Hinge jig is used for drilling 35 mm hinge holes on cabinet doors. Handle & Pull jig is used for drilling 32 mm standard screw holes from 64 mm to 320 mm & from 3 inch to 10 inch handle and pulls. Adjustable Shelving jig is used to drill holes 5 mm in diameter with 32 mm standart. Drawer Slide jig is used for drilling holes inside the drawer cabinets.

Hope the difference in these products can better clarify your question. Thank you for your interest.

ASIN	B073VXJ7Z5
Brand	Şablon
Country Of Origin	Turkey
Customer Reviews	3.8 3.8 out of 5 stars (6)
Finish Types	Titanium
Item Dimensions	49.2 x 33.8 x 20.4 centimetres
Item Weight	7.44 Kilograms
Manufacturer	Aktif Yapi Ltd
Material	Metal, Plexiglass, Steel
Model Number	S 190-12
Number of Flutes	1
Shank Type	Straight
Surface Recommendation	Plastic, Wood
Tool Flute Type	Spiral
Unit Count	1 count

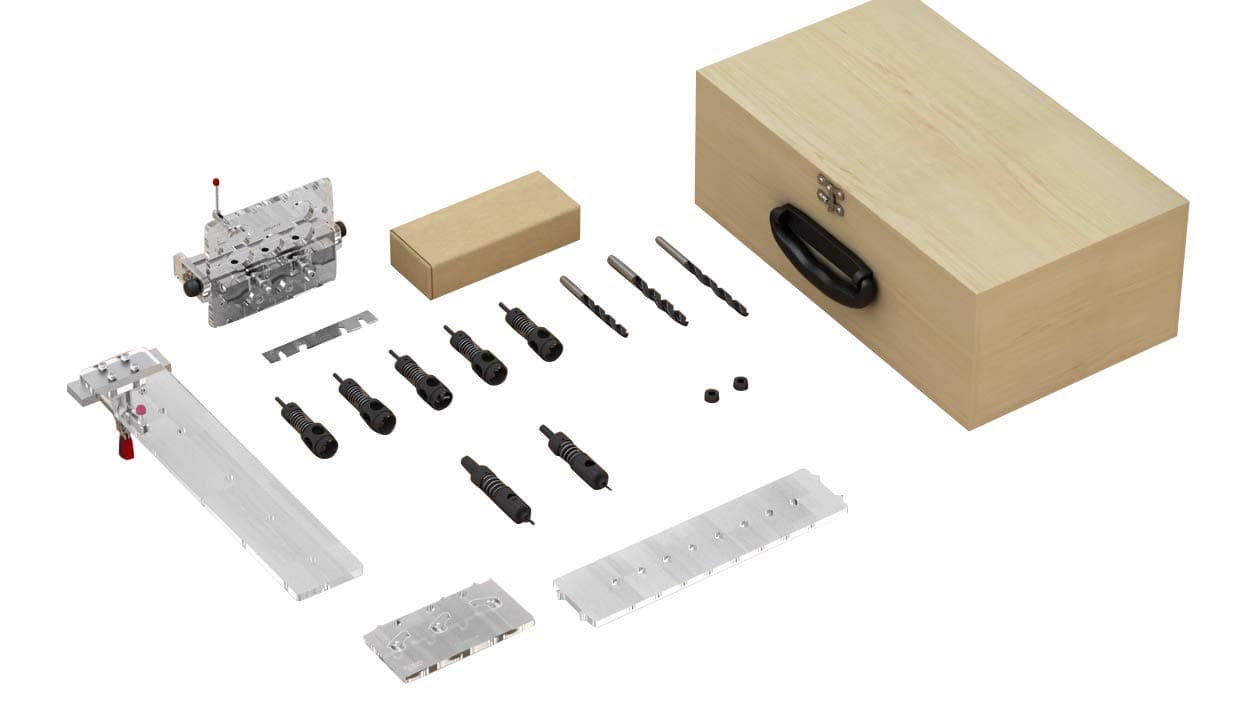

Sablon Adjustable Minifix/Rafix & Shelving & Dowel Jig Set 3/4” (18-19mm) and 5/8” (15-16mm) Panels
