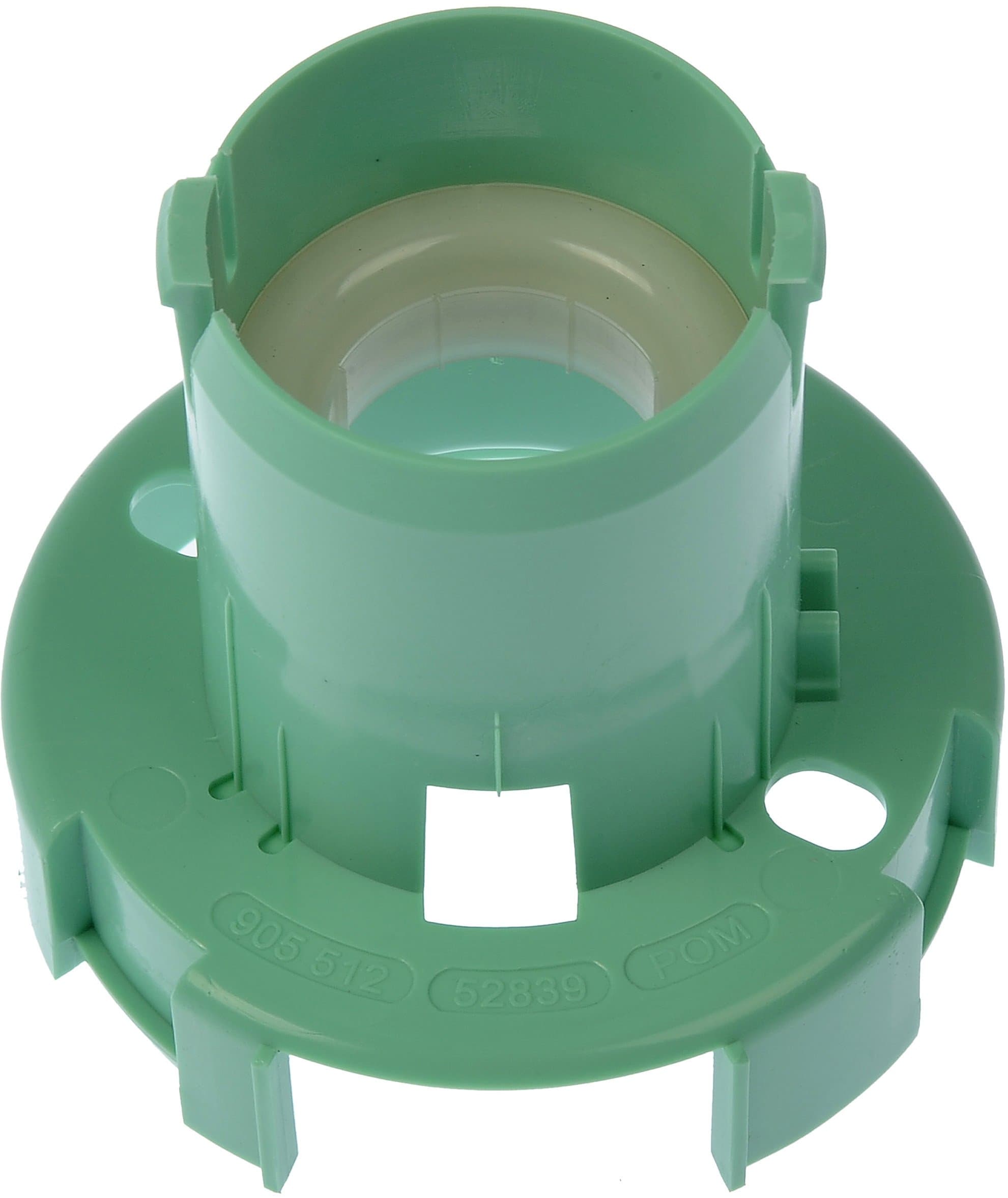

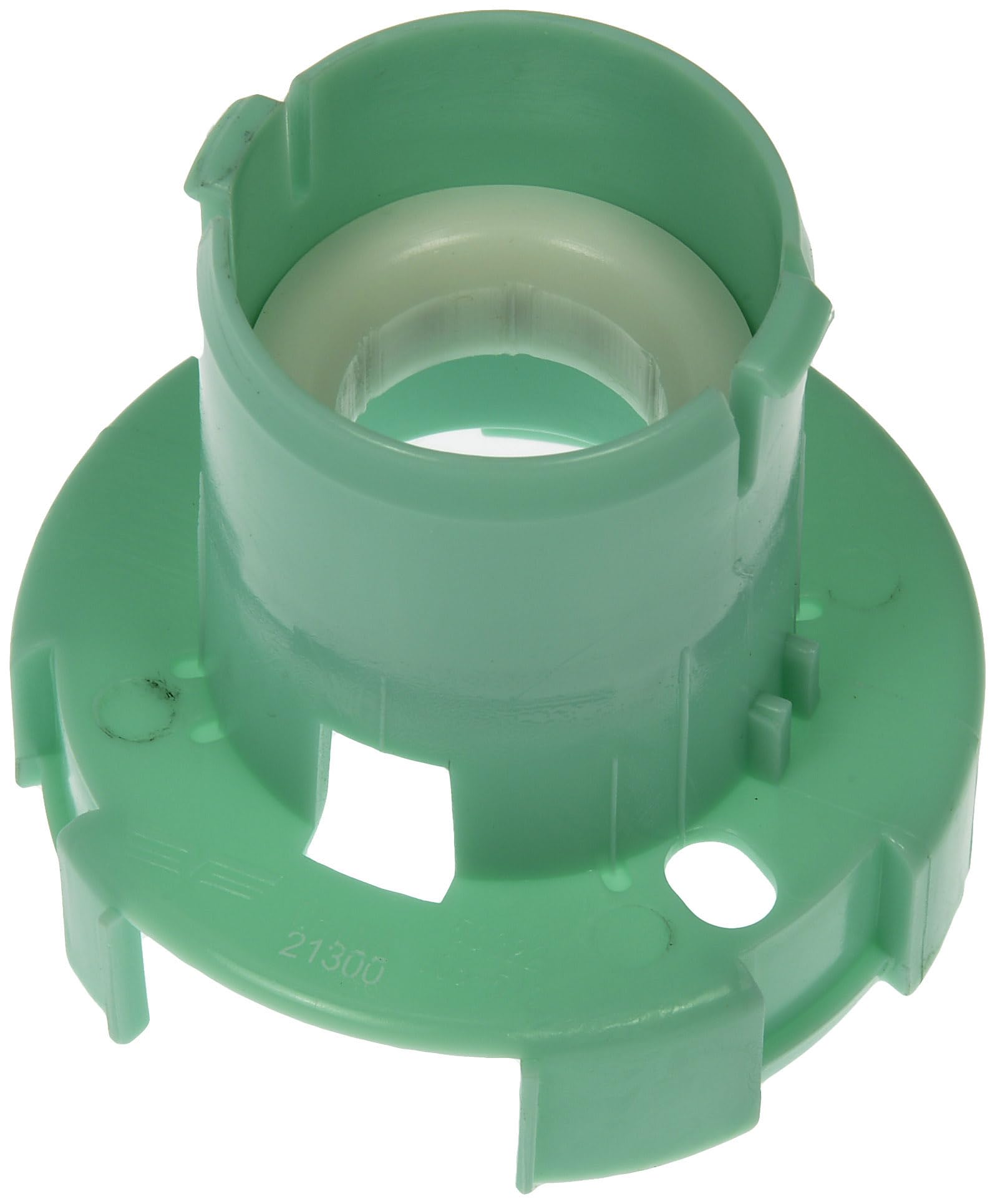

Dorman 905-512 Steering Shaft Bearing Compatible with Select Models

This review is for the Dorman 905-512 steering bearing Perfect fit and I mean PERFECT!!! This solved all the rattling issues on my 2005 Silverado 2500hd. It always felt like the front of the truck was falling apart but after replacing the bearing with this one, it is like new again. I turned the steering wheel to the left until the onstar button was pointing to the floorboard then put my seat belt through the steering wheel and buckled it to hold the steering wheel in place. You do NOT want your steering wheel to turn while it is disconnected. Then, I took the 15mm bolt out if the intermediate steering shaft under the hood, then removed the 15mm bolt from the steering shaft under the dash. I let the steering shaft rest toward the firewall while I worked. It was out of the way enough. I pried the old bearing out with a flat head screwdriver. It was easy to remove. I greased up the new bearing and the steering shaft coming down from the steering wheel. This is the part that gets hard. Once the new bearing was started onto the shaft, I used a rag in my right hand hand and just kept pushing, pulling, twisting and cussing while I was wiggling the steering wheel with my left hand. (DO NOT TURN THE STEERING WHEEL, JUST WIGGLE IT BACK AND FORTH) The rag made it easier to hold the new bearing. While wiggling the steering wheel the bearing is going to move with the shaft but it still made it easier to put on once I started wiggling it. It is a tight space and it takes a LOT of force to get the bearing in place. Just keep pushing and wiggling it until it snaps in. I heard mine snap in. Do not pry it in with a screwdriver, the plastic will break or crack. I'm sure there area tools that make this easier but I only had my hands. Once it was snapped in, I cleaned the grease off the shaft, put the steering shaft back on under the dash and under the hood and put the bolts back on. It took me a total of 20 minutes to change the bearing from beginning to end. Took it for a test drive and no more rattling sound. If you are feeling and hearing a rattling sound, try this part first before replacing your intermediate steering shaft. The rattling is most likely coming from the old factory bearing. You can also get under your dash, grab the steering shaft and shake it, If you can move it and you hear the rattling, it will most likely be your steering bearing. One thing to note! The OLD bearing will have the opening/gap toward the top of the truck, the NEW bearing will have the opening/gap toward the floorboard. There is a small cut out on the right side of the steering column for the tab to go into and the bearing will only fit one way. See attached pictures. Sorry, I didn't get a picture of the old bearing in place before I started.

Fixed the problem and is very easy to install. I was genuinely surprised at what a huge difference this part made. The overall feel thru the steering wheel is like a different vehicle altogether. Now it feels like what it is supposed to feel like but never did since I bought the truck somewhat neglected. Now I can feel what’s actually going on and more accurately assess all the other issues lol. Anyway, neglecting this minor repair really disconnects you from the whole driving experience. If you have that clunk in the steering column at low speed and you cant feel the road anymore, this might be the solution. I just wanted to eliminate the annoying clunking sound and ended up discovered a feeling that I didn’t even know it was capable of.

After watching many videos of people having immense difficulty removing and installing this bearing, I thought I'd leave some feedback on how I did it. First disconnect the upper intermediate steering shaft. To remove the bearing, I used a metal rod about one foot in length and one half inch in diameter. I placed one end of the rod against the flange on the bearing housing, then struck the other end with a hammer. Two solid taps with the hammer and the bearing came right out. The most difficult part of installing the new bearing is getting the bearing lined up perfectly with the shaft. I found that moving the gas pedal out of the way makes this process much simpler, though still a little difficult. To remove the gas pedal, just remove the two nuts holding the gas pedal to the firewall. Then move the pedal out of the way. Once the bearing is started on the shaft don't try to fight it for an hour and scrape your hands all up trying to seat the bearing. Since the upper intermediate shaft is already disconnected, remove the shaft, along with the rubber boot attached to the firewall in the engine bay. You will then be able to use the opening in the firewall to seat the bearing. I used a 34mm deep socket with a 6 inch extension to do this. A smaller diameter socket would have also worked, this is just what I used. The socket just needs to be large enough to go over the steering shaft and deep enough to seat the bearing. Insert the socket, with attached extension, through the opening in the firewall (through the engine bay side) until the socket is over the steering shaft and contacts the bearing housing. Then tap the end of the socket extension with a two pound hammer until the bearing is firmly seated. This took about ten to fifteen taps with the hammer, but I wasn't hitting the extension very hard, as I didn't want to ruin the new bearing. A carpenters hammer will also work if that's all you have. It will just take more effort. Make sure the protrusion at the bearing housing flange is lined up with the slot on the steering column. They will need to be lined up for the bearing housing to fully seat. The protrusion must engage in the slot, or over time the bearing housing will wobble and the bearing will quickly wear out and fail. As for the Dorman steering shaft bearing, it was exactly what I needed to fix the clunking in my steering column. Hope this helps.

Was easy enough to replace. Adding a little silicone grease to the inside helps to slide it on easier.

This part got rid of my steering wheel clunk. After reading forums I ordered the intermediate shaft and while changing it I noticed that this bearing was out. If you have the clunk, do yourself a favor and grab the steering shaft just where it leaves the steering column and see if it will wiggle where it goes into the column. I now have a new steering shaft but it was not needed. The part is very simple to change but it very hard to push the new bearing into the column. Do yourself another favor and eat your Wheaties before you start. I'm a large guy and I had to take a few breaks pushing this thing it do to the location. The only reason for 4 stars is the part did not look exactly like the original and didn't seem to really seat fully into the column. It did look the same in the areas that matter but I would still go with the AC Delco original if I did the job again. It has been in for a couple weeks now though with no clunk.

Awesome

Excelente pieza. Le quedo muy bien a mi cheyenne 2002. Mexicana le quito el ruido del volante.

fit really well on my 03 Tahoe, little tricky to get the old bearing out and the new in, plan for an hour to get it done, remove the upper intermediate steering shaft from the steering column, remove the screws that hold the pedals and you‘ll have enoigh room down there to work also add a little extra grease to the bearing, makes it work much longer as there wasn‘t much grease in the bearing itself

Good product! Solved the rattling issue on the steering column. Thanks!

تحل مشكله الاصوات اللي تطلع مع المطبات من تحت الدركسون وداخل المركبه فقط ،يركب على جمس موديل 2006 ،من 2007 واعلى (الشكل الجديد )القطعه نفس الشكل لكن كبيرة

سيء انا طلبت نفس الي بالصورة وصلتني القطعه صينيه لماذا هذا الكذب
