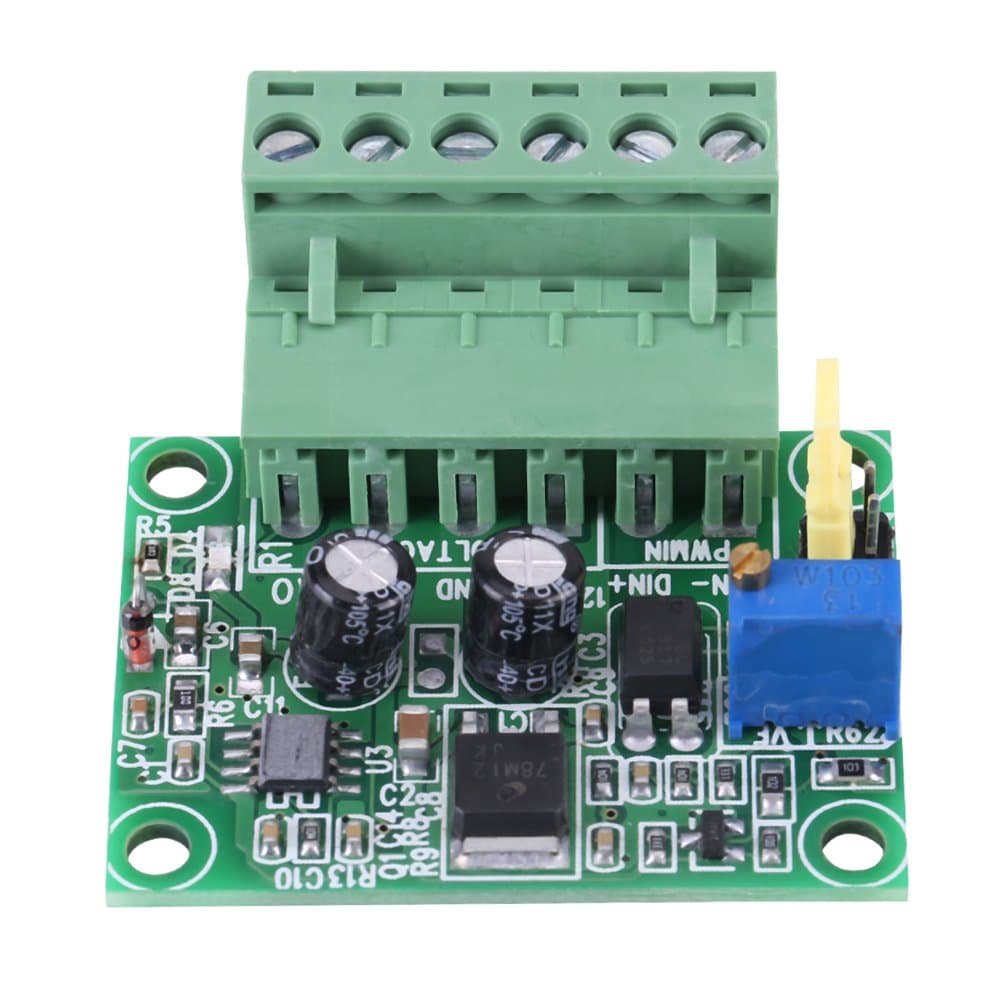

The 1-3KHz 0-10V PWM-to-Voltage Module by Walfront converts digital PWM signals (5V or 24V) into smooth analog voltages (0-10V or 0-5V) with embedded microcontroller technology. Designed for industrial control applications, it supports PWM frequencies from 1KHz to 3KHz, features a compact rail-mount design, and enables easy fine-tuning via a potentiometer, making it an essential tool for precise voltage regulation in automation systems.
| ASIN | B0789738RC |
| Best Sellers Rank | 39,938 in Electronics & Photo ( See Top 100 in Electronics & Photo ) 263 in Power Transformers (Electronics & Photo) |
| Brand | Walfront |
| Country Of Origin | China |
| Current Rating | 12 Milliamps |
| Customer Reviews | 4.0 4.0 out of 5 stars (107) |
| Item Weight | 0.02 Kilograms |
| Manufacturer | Walfront |
| Manufacturer Part Number | Walfront695yqi42kp |
| Maximum Frequency | 3 KHz |
| Minimum Frequency | 1 KHz |
| Model Number | 663862530438 |
| Mounting Type | Rail Mount |
| Power Source | Corded Electric |
| UPC | 663862530438 |
| Unit Count | 1.0 count |
G**N
Works a charm.
Ordered this to take 24v PWM to 0-10v to drive my brushless spindle. Works a treat. Better instructions can be googled.
A**R
Could not achieve full output span
we could not achieve the full 0-10V output for some reason, lowest output we could achieve was 1V
A**R
Works better at low frequencies.
I bought this to interface a CNC controller to a VFD. The CNC controller board outputs PWM, but the VFD accepts 0-10V for RPM control. This board converts the high duty level of the PWM signal into a voltage from 0-10V, so a signal 25% high for the cycle should be 2.5V. The accuracy of this device is a bit questionable at the specified frequency of 1-3Khz, being something like 10% high (it gets worse the higher the frequency). And if you use the trim pot to make the reading accurate at any point it will drift over the range. HOWEVER the accuracy at lower frequencies is pretty good, at 100Hz it's something like 1% accurate, which is just fine. I have had to trim it slightly to get this accuracy which has ended up with the top end being slightly low and the low end being slightly high. But within a few hundred rpm over the range in general, so I'm happy with it! So, 4*, it doesn't perform very well at the advertised frequency range, however it's acceptable at lower as long as you can configure your PWM output this way.
A**2
Dimensions are wrong
I haven't tried it yet, so I can't say if it works. But I can say that the dimensions given are wrong, it is actually 4.5cm wide, not 5, and about 3.35mm deep, not 4.5cm. Like I say, not a big deal, but the mounting bracket I 3D printed has to go in the scrap bin.
M**R
Difficulty in setting up
I have been unable to achieve a maximum controlling output of 10v (8.87) with a 12v supply.
J**.
Accuracy
It's kind of okay but it lacks accuracy. I was aiming for 0-10v out and finally settled to set the middle right, so when it accurately outputs 5 volt in the middle of the range, it will output over 1v to over 4v where it should output exactly 1v or 4v, and then above the middle it outputs less than 6 to finally 9.7v where it should be 10v. There is no way to make it more accurate no matter how much time you spend to fine tune this
S**E
Parfait, très bon produit, correspond à la description.
K**I
Bin glücklich mit dem Kauf. Funktioniert super
M**.
materiale e componenti buoni, restituito in quanto la frequenza in ingresso nel mio caso era troppo bassa per farlo funzionare consegna super con prime
W**.
Het werkt goed, maar de frequentie is te laag voor mijn toepassing.
J**O
Funciona tal y como indica el producto.
