Camera
Image Sensor: 1/2.7" Progressive Scan CMOS
Signal System: PAL/NTSC
Min. Illumination: 0.001 Lux @ (F1.0, AGC ON), 0 Lux with Light
Shutter time: 1/3 s to 1/100,000 s
Slow shutter: Support
Lens: 2.8 mm, horizontal FOV 102°, vertical FOV 54°, diagonal FOV 121°
Lens Mount: M12
Day& Night: Auto
Wide Dynamic Range: 120 dB
Digital noise reduction: 3D DNR

Compression Standard
Video Compression:H.265+/H.265/H.264+/H.264/MJPEG
Video bit rate:32Kbps~16Mbps

Max. Image Resolution: 2560 × 1440 @ 30fps
Image Enhancement: BLC/3D DNR/HLC/ROI
Image Settings: Saturation, brightness, contrast, sharpness, AGC,
white balance adjustable by client software or web browser
ROI: Support 1 fixed region for main stream and sub-stream separately

Network
Network Storage: microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
General Function: One-key reset, anti-flicker, three streams, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter

Interface
Communication Interface: 1 RJ45 10M / 100M Ethernet interfaceReset Button: Yes

Smart Feature-set
Behavior Analysis: Line crossing detection, intrusion detection, unattended baggage detection, object removal detection
Line Crossing Detection: Cross a pre-defined virtual line
Intrusion Detection: Enter and loiter in a pre-defined virtual region
Unattended Baggage: Objects left over in the pre-defined region such as the baggage, purse, dangerous materials
Object Removal: Objects removed from the pre-defined region, such as the exhibits on display.

General
Power Supply:12 VDC ± 25%, 5.5 mm coaxial power plug ,PoE (802.3af, class 3)
Weather Proof:IP67

Connectivity protocol	HomePlug
Controller type	Hikvision NVR
Mounting type	Surface Mount
Video capture resolution	4 MP
Number of items	1
Included components	1
Number of channels	1
Viewing angle	107 Degrees
Frame rate	20 frames_per_second, 30 frames_per_second
Material	Metal
Wattage	8.5 watts
Item dimensions L x W x H	15.2 x 15.2 x 15.2 centimetres
Manufacturer	Real HD
Product Dimensions	15.24 x 15.24 x 15.24 cm; 599 g
Shape	Dome
Type of Bulb	LED
Special Features	Image, Motion Sensor, Night Vision, Portable
Usage	Inside; Professional, Outside; Professional
Batteries included?	No
Item Weight	599 g

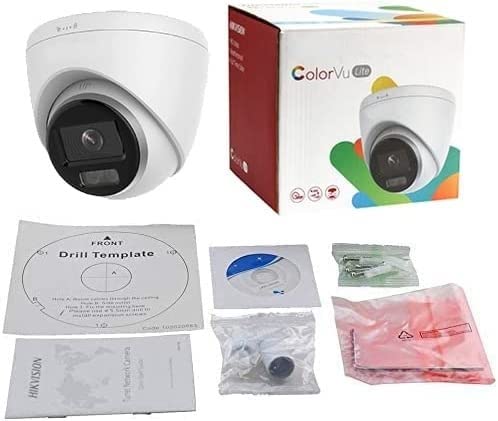

4MP ColorVu IP 247 Color 2.8mm PoE Turret Dome Camera IP67 IK10 H.265+ Built in Mic English Version Compatible with Hikvision NVR
